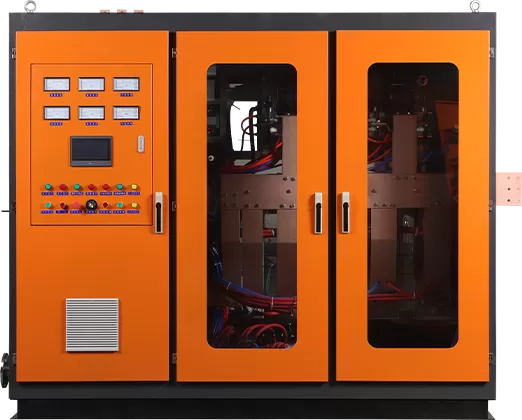

1V1 Medium-Frequency Power Supply in Series

Name: 1V1 Medium-Frequency Power Supply in Series
Brand: Luoyang Dinghong Electric Technology Co., Ltd.
Availability: InStock

Model: KGPS-CL-1V1
This device is an inverter-series circuit that charges the capacitor through a reactor to ensure stable voltage output. The presence of the capacitor also prevents high-order harmonics from the inverter from feeding back into the grid, thus avoiding harmonic hazards to the power grid. Additionally, this device features a full-wave rectifier output circuit, maintaining a power factor consistently above 95%.

Get a Custom Quote

SPECIFICATIONS

Specifications of 1V1 Medium-Frequency Power Supply in Series

MODEL	INCOMING VOLTAGE(V)	INCOMING CURRENT(A)	DC VOLTAGE(V)	DC CURRENT(A)	MEDIUM FREQUENCY VOLTAGE(V)	MEDIUM FREQUENCY(Hz)	MEDIUM FREQUENCY POWER(Kw)	MATCHING FURNACE(T)
KGPS-CL-250KW	380V/ Three-phase	408	500V	500	2400	100-600	250	0.25
KGPS-CL-500KW		816		1000			500	0.5
KGPS-CL-800KW		1305		1600			800	1
KGPS-CL-1000KW	575V / Six-phase	526	775V*2	1290	2800	100-500	1000	1-1.5
KGPS-CL-1200KW		631		1548			1200	1.5-2
KGPS-CL-1500KW		789		1935			1500	2-3
KGPS-CL-2000KW		1052		2580			2000	2-3
KGPS-CL-2500KW		1315		3225			2500	3-5
KGPS-CL-3000KW		1578		3870		100-300	3000	3-5
KGPS-CL-3500KW		1842		4516			3500	4-6
KGPS-CL-4000KW		2105		5161			4000	5-7
KGPS-CL-5000KW		2632		6451		100-250	5000	8
KGPS-CL-6000KW		3158		7741			6000	8-10
KGPS-CL-8000KW	660V / Twelve-phase	1833	890V*4	8988	3000		8000	10-12
KGPS-CL-10000KW		2291		11235			10000	15
KGPS-CL-15000KW		3438		16853			15000	20

ADVANTAGES

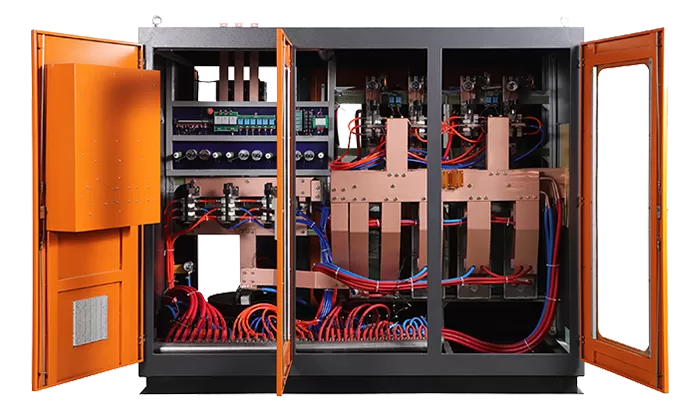

Product Advantages of 1V1 Medium-Frequency Power Supply in Series

This device employs a series-resonant medium-frequency induction melting furnace, with a half-bridge series inverter as its inverting component. It is primarily used for melting ordinary carbon steel, alloy steel,cast steel,and non-ferrous metals,featuring advantages such as rapid melting, energy efficiency, and low high-order harmonic pollution.

This power supply can be powered by 380V-660V voltage
Pollution-free power supply meets national requirements
The molten iron in the furnace can be adjusted to maximum power within the range of 0-100%
By doubling the rectified output voltage without increasing the input voltage,circuit losses are reduced
