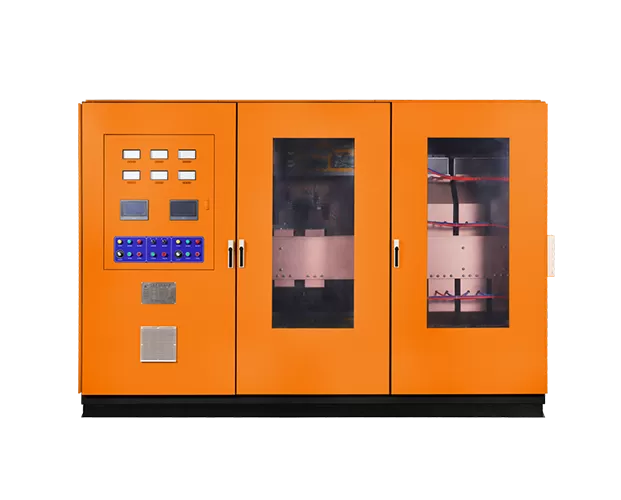

Name: 1V2 Medium-Frequency Power Supply in Series
Brand: Luoyang Dinghong Electric Technology Co., Ltd.
Availability: InStock

Model: KGPS-CL-1V2
Using a medium frequency power supply to connect two furnaces to work simultaneously, one of the furnaces is distributed with high power for rapid smelting, and the other furnace for casting is distributed with low power heat preservation. After completion, their power levels can be switched: the casting furnace can go to high power for smelting, and the smelting furnace can reduce to low power for heat retention. The system allows for flexible power distribution, enabling equal power sharing, partial shutdowns, or varied power levels for each furnace, enhancing flexibility and practicality.

Get a Custom Quote

Specifications

Specifications of 1V1 Medium-Frequency Power Supply in Series

MODEL	INCOMING VOLTAGE(V)	INCOMING CURRENT(A)	DC VOLTAGE(V)	DC CURRENT(A)	MEDIUM FREQUENCY VOLTAGE(V)	MEDIUM FREQUENCY(Hz)	MEDIUM FREQUENCY POWER(Kw)	MATCHING FURNACE(T)
KGPS-CL-250KW	380V/ Three-phase	408	500V	500	2400	100-600	250	0.25
KGPS-CL-500KW		816		1000			500	0.5
KGPS-CL-800KW		1305		1600			800	1
KGPS-CL-1000KW	575V / Six-phase	526	775V*2	1290	2800	100-500	1000	1-1.5
KGPS-CL-1200KW		631		1548			1200	1.5-2
KGPS-CL-1500KW		789		1935			1500	2-3
KGPS-CL-2000KW		1052		2580			2000	2-3
KGPS-CL-2500KW		1315		3225			2500	3-5
KGPS-CL-3000KW		1578		3870		100-300	3000	3-5
KGPS-CL-3500KW		1842		4516			3500	4-6
KGPS-CL-4000KW		2105		5161			4000	5-7
KGPS-CL-5000KW		2632		6451		100-250	5000	8
KGPS-CL-6000KW		3158		7741			6000	8-10
KGPS-CL-8000KW	660V / Twelve-phase	1833	890V*4	8988	3000		8000	10-12
KGPS-CL-10000KW		2291		11235			10000	15
KGPS-CL-15000KW		3438		16853			15000	20

ADVANTAGES

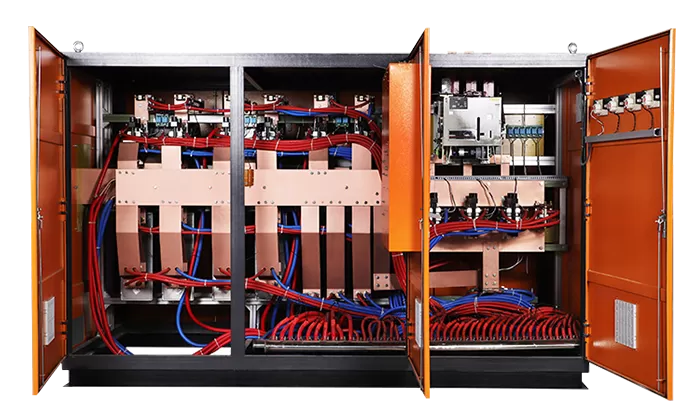

Product Advantages of 1v2 Medium Frequency Power Supply In Series

High efficiency. One set of power supplies can connect two or three furnaces at the same time. The smelting and heat preservation power can be arbitrarily distributed according to the needs, and the smelting can be uninterrupted. When needed, the heat preservation, heating, quenching and tempering can be carried out at the exact temperature, so as to maximize the output.

Medium-frequency power supply efficiency ≥98%
Cos φ ≥0.95 when operating in any power state
Power start success rate can reach 100%
When the molten iron in the furnace has a small flow rate, cos φ ≥0.95
The molten iron in the furnace is adjustable in the range of 0-100%
Saves more than 10% electricity than ordinary electric furnaces and is faster

ADVANTAGES

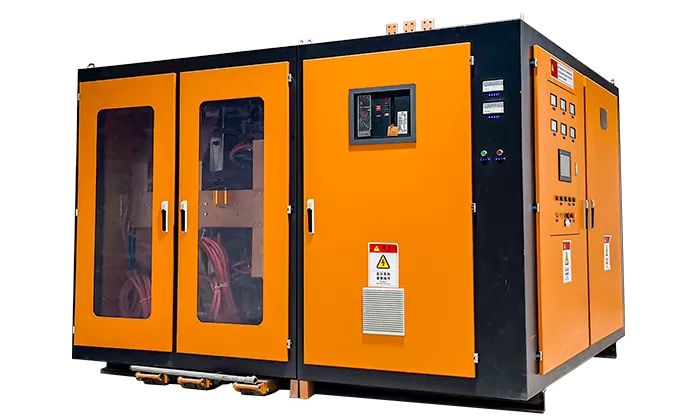

High-Performance Series Inverter for Smelting

Uncontrolled rectification is used on the rectifier side of the series inverter to ensure that the power factor reaches 0.95 at any power. The inverter side adopts voltage resonance to increase the voltage of the furnace and reduce the power loss.
Good start-up characteristics, can start under full load and heavy load, the start-up success rate reaches 100%.
Constant power output, the power output adopts digital constant power control technology. During the smelting process, when the load temperature changes, its load always gives full power output, thus shortening the smelting time.
