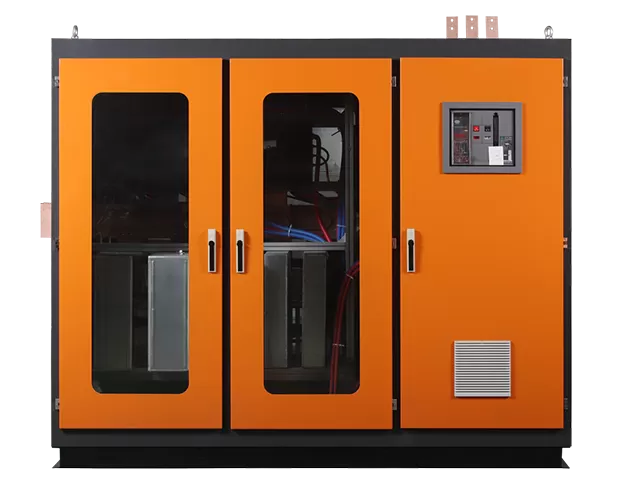

Medium-Frequency Power Supply in Parallel

Name: Medium-Frequency Power Supply in Parallel
Brand: Luoyang Dinghong Electric Technology Co., Ltd.
Availability: InStock

Model: KGPS-BL
Stable Medium-Frequency Output for Industrial Induction Melting and Heating
Dinghong's KGPS-BL parallel medium-frequency power supply is engineered for industrial induction melting and heating systems that demand stable output, strong load adaptability and reliable power control. Its parallel-resonant circuit efficiently converts incoming power into adjustable medium-frequency current, available in configurations from 250 to 15,000 kW with output frequencies of 100–600 Hz.
Each unit can be precisely matched to furnace capacity, metal type, incoming voltage and specific production requirements.

Get a Custom Quote

Specifications

Specifications of Medium-Frequency Power Supply in Parallel

MODEL		INCOMING VOLTAGE/V		INCOMING CURRENT/A	DC VOLTAGE/V	DC CURRENT/A	INTERMEDIATE FREQUENCY VOLTAGE/V	INTERMEDIATE FREQUENCY/HZ	INTERMEDIATE FREQUENCY POWER/Kw	AUXILIARY ELECTRIC FURNACE	DIMENSIONS OF POWER CABINET	POWER CABINET WEIGHT
KGPS-BL-250KW	250	380V/ three-phase	380	380	513	466	1500	100-600HZ	250Kw	0.25T	160011002000	1.1T
KGPS-BL-500KW	500		380	760	513	931			500Kw	0.5T	160011002000	1.1T
KGPS-BL-800KW	800		380	1216	513	1490			800Kw	1T	160011002000	1.1T
KGPS-BL-1000KW	1000	660V/ six phase	660	437	1782	536	2500	100-400HZ	1000Kw	1-1.5T	240011002000	1.5T
KGPS-BL-1200KW	1200	660V/ six phase	660	525	1782	643	2500		1200Kw	1.5-2T	240011002000	1.5T
KGPS-BL-1500KW	1500	800V/ six phase	800	541	2160	663	3200		1500Kw	2-3T	240011002000	1.7T
KGPS-BL-2000KW	2000	800V/ six phase	800	722	2160	884	3200		2000Kw	2-3T	240011002000	1.7T
KGPS-BL-2500KW	2500	900V/ six phase	900	802	2430	983	3600		2500Kw	3-5T	300011002000	2.2T
KGPS-BL-3000KW	3000	900V/ six phase	900	962	2430	1179	3600	100-300HZ	3000Kw	3-5T	300011002000	2.2T
KGPS-BL-3500KW	3500	1000V/ six phase	1000	1010	2700	1238	3800		3500Kw	4-6T	300011002000	2.2T
KGPS-BL-4000KW	4000		1000	1155	2700	1415			4000Kw	5-7T	300011002000	2.8T
KGPS-BL-5000KW	5000		1000	1443	2700	1769		100-250HZ	5000Kw	8T	300011002000	3.4T
KGPS-BL-6000KW	6000		1000	1732	2700	2123			6000Kw	8-10T	300011002000	3.4T
KGPS-BL-8000KW	8000	1250V/ 12 phases	1250	924	3375	3695	4000		8000Kw	10-12T	360012002000	3.6T
KGPS-BL-10000KW	10000		1250	1155	3375	4619			10000Kw	15T	360012002000	4.2T
KGPS-BL-15000KW	15000		1250	1732	3375	6928			15000Kw	20T	360012002000	5.6T

Product Definition

What Is a Medium-Frequency Power Supply in Parallel?

A medium-frequency power supply in parallel is an industrial induction power system that converts incoming AC power into adjustable medium-frequency current and energizes an induction load through a parallel-resonant circuit.

The KGPS-BL series is used as the electrical power source for industrial induction melting furnaces and heating equipment. The system converts incoming power into adjustable medium-frequency current and delivers it to a parallel-resonant induction load. Power rating, output frequency, incoming voltage and supporting components can be configured according to the furnace capacity, metal type and production requirements.
The control board of the parallel medium-frequency power cabinet uses an advanced integrated circuit as its control core, providing strong control capability and a high level of integration. The connection between the control board and the main circuit is simple and reliable, while the integrated control design supports stable operation, protection and system regulation.

ADVANTAGES

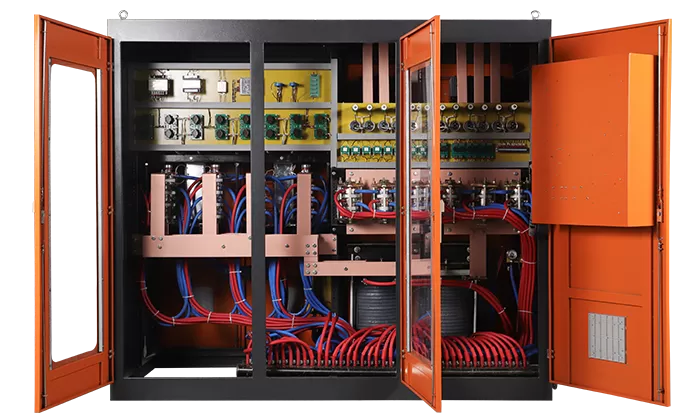

Product Advantages of Medium-Frequency Power Supply in Parallel

The control board of the equipment adopts advanced integrated circuit as the control core, which has strong control ability and high integration degree. The connection between the whole control board and the main circuit is simple and reliable, and has perfect control function.
This device is equipped with a complete multi-channel protection system including overcurrent, overvoltage, current limiting, and voltage limiting. Once a circuit fault occurs, the protection system will act within a short time, reliably protecting valuable components such as thyristors and capacitors from damage, preventing unnecessary losses. Each control system has an interlock function to effectively prevent incorrect operation.
This control system adopts zero-voltage soft start and slow start functions, and uses an advanced dual closed-loop regulation system. In actual operation, it can start 100% reliably and without impact. In real operation, even under conditions of large load changes, the equipment can operate steadily and reliably.

ADVANTAGES

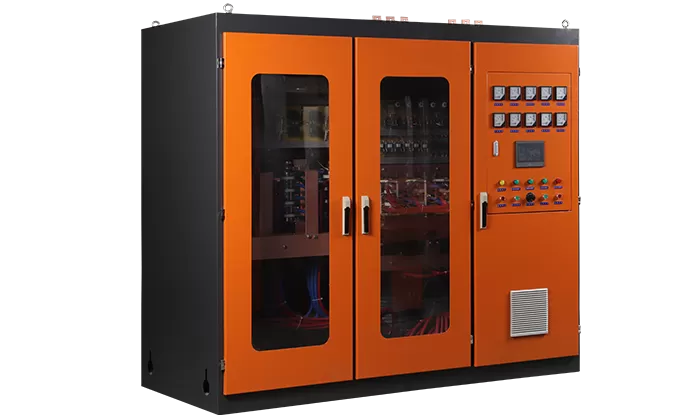

Key Performance Advantages: Efficiency, Power Factor & Startup

The control board of the equipment adopts advanced integrated circuit as the control core, which has strong control ability and high integration degree. The connection between the whole control board and the main circuit is simple and reliable, and has perfect control function.
This device is equipped with a complete multi-channel protection system including overcurrent, overvoltage, current limiting, and voltage limiting. Once a circuit fault occurs, the protection system will act within a short time, reliably protecting valuable components such as thyristors and capacitors from damage, preventing unnecessary losses. Each control system has an interlock function to effectively prevent incorrect operation.
This control system adopts zero-voltage soft start and slow start functions, and uses an advanced dual closed-loop regulation system. In actual operation, it can start 100% reliably and without impact. In real operation, even under conditions of large load changes, the equipment can operate steadily and reliably.
Medium-frequency power supply efficiency ≥ 95%
Cos φ ≥ 0.92 in any power state operation
Power start success rate can reach 100%
Saves more than 10% electricity than ordinary electric furnaces and is faster
